○ Hardware Parameter

Dimension

250mm×145mm×36mm (L×W×H)

Net weight

0.34Kg

Operating condition

Operating temp: -10 ~ +55°C

Operating humidity:5 ~ 95%  (non-condensed)

Storing condition

Storing temp: -40 ~ +70°C

Storing humidity: 5 ~ 95%  (non-condensed)

Power adapter

DC 12V, 1.5A, external AC-DC power adaptor

Power supply

≤18W

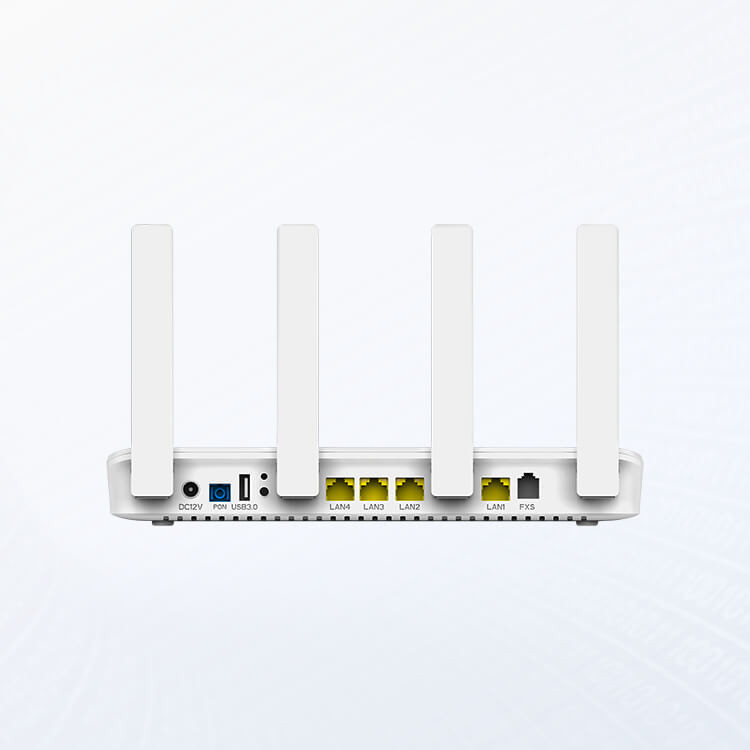

Interface

AX1500, AX1800:

1*XPON+4*GE+1*POTS+1*USB3.0+Wi-Fi 6

AX3000:

1*XPON+1*2.5GbE+3*GE+1*POTS+1*USB3.0+Wi-Fi 6

Indicators

PWR, PON, LOS, WAN, Wi-Fi, FXS, ETH1~4, WPS, USB

○ Interface Parameter

PON Interface

l 1XPON port(EPON PX20+ and GPON Class B+)

l SC single mode, SC/UPC connector

l TX optical power: 0～+4dBm

l RX sensitivity: -27dBm

l Overload optical power: -3dBm(EPON) or  -8dBm(GPON)

l Transmission distance: 20KM

l Wavelength: TX 1310nm, RX1490nm

User interface

l 4*GE(or AX3000: 1*2.5GbE+3*GE), Auto-negotiation,RJ45 ports

l 1×POTS RJ11 Connector

Antenna

4 × 5dBi external antennas

○ Function Data

O&M

l WEB/TELNET/OAM/OMCI/TR069

l Support private OAM/OMCI protocol and Unified network management of VSOL OLT

Internet connection

Support Routing Mode

Multicast

l IGMP v1/v2/v3, IGMP snooping

l MLD v1/v2 snooping

VoIP

l SIP and IMS SIP

l G.711a/G.711u/G.722/G.729 Codec

l Echo cancellation,VAD/CNG,DTMF Relay

l T.30/T.38 FAX

l Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference

l Line testing according to GR-909

WIFI

l Wi-Fi 6:

AX1500: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz

AX1800, AX3000: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz

l Wi-Fi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3

l Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM

l Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band

l Support WIFI Easy-mesh function

L2

802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN

L3

IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS

Firewall

Anti-DDOS, Filtering Based on ACL/MAC /URL
